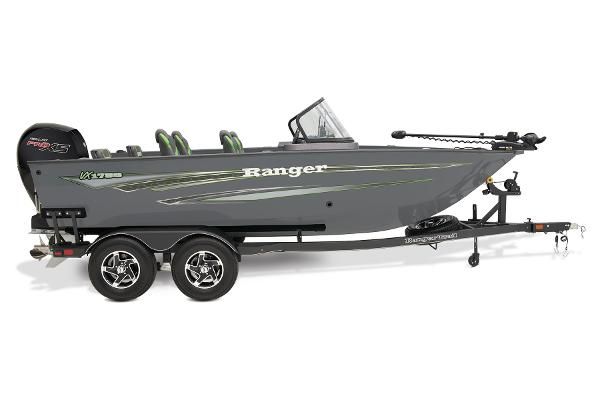

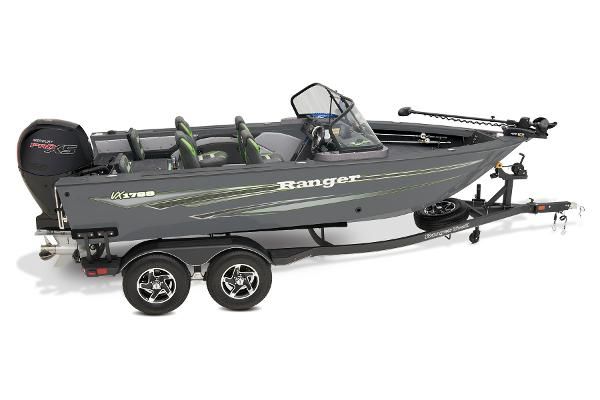

2023 Ranger VX1788 WT

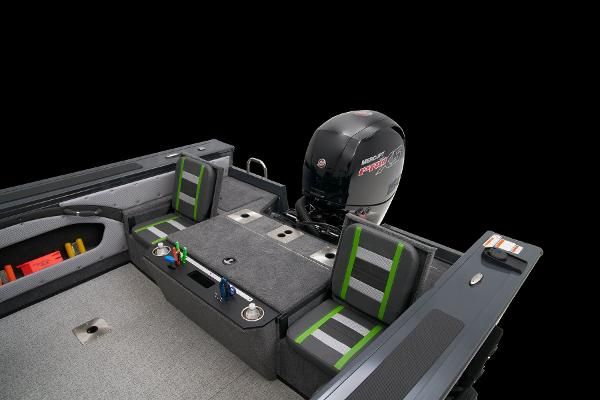

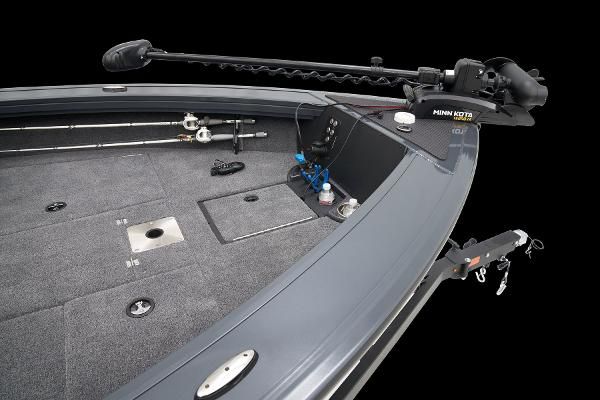

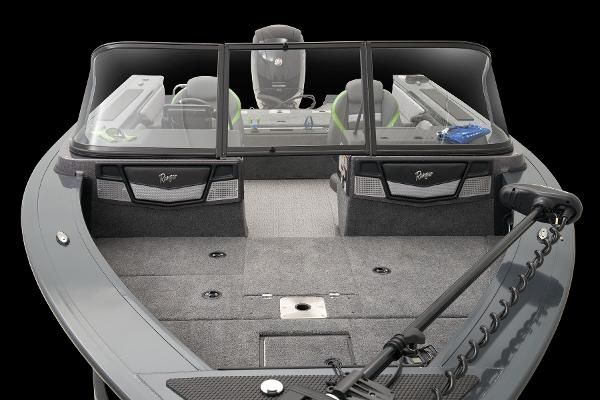

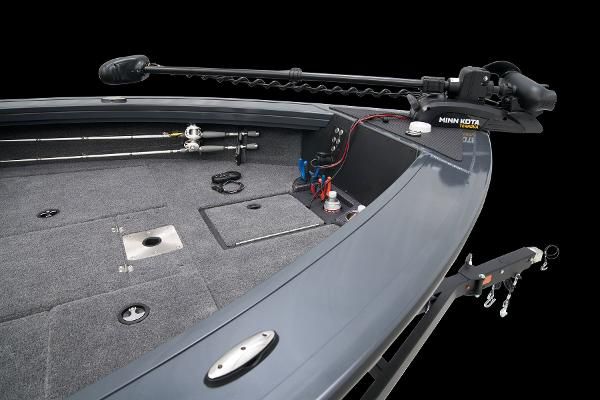

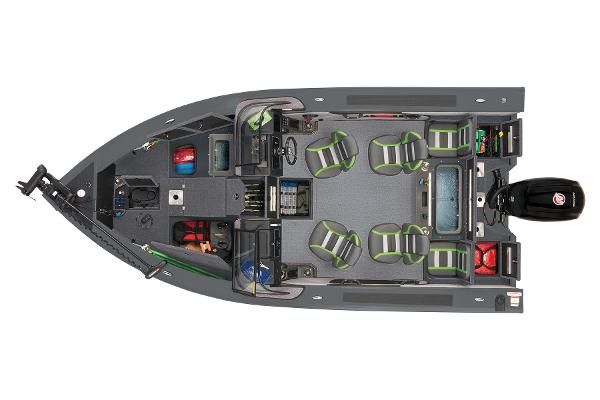

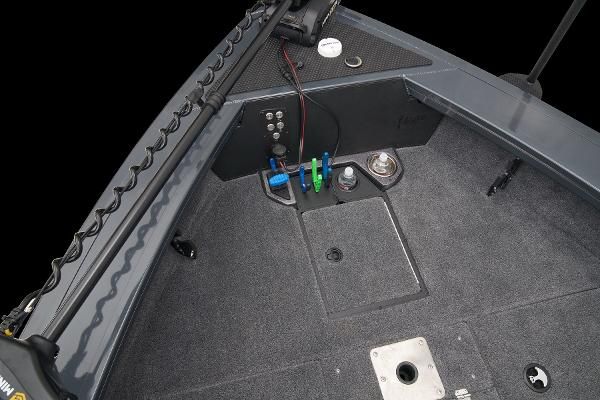

The Ranger® VX1788WT is the answer for the family who wants it all: fishing chops with all-day comfort, enviable features, and maximum value. Every inch of the VX1788WT is designed for convenience and utility, with ingenuity built in from the rear jump seats with concealed storage to the in-floor cooler and oversized storages and baitwell in the front deck. This rig is brimming with angling prowess thanks to standard Lowrance® electronics and Minn Kota® trolling motor with storage up front to stow the pedal when not in use. Smooth hydraulic steering delivers commanding control over the foam-filled and all-welded hull while a deck extension offers a large, solid platform up front. Storage options are everywhere you look, proving the VX1788WT is Built For Big Water, Big Fish And Big Families.

Basic Boat Info

Make: Ranger
Model: VX1788 WT
Year: 2023
Category: Power
Construction: Aluminum

Dimensions

Length: 18'2 ft
Length Overall: 18'2 ft
Beam: 8'6 ft
Dry Weight: 1,950 lb

Engines / Speed

Engines: 1
  • Type: Outboard

Tanks

Fuel Tanks: 1
Fuel Tank Capacity: 40 gal

Other

Maximum Number Of Passengers: 7
Boat Class: Aluminum Fish Boats
More Info : Ranger Website
Additional Details
  • Length:18' 2"

  • Hull Length: 18' 2"

  • Beam: 102"

  • Max. Recommended HP: 175 HP

  • Engine Shaft Length: 25"

  • Inside Depth: 28"

  • Hull Thickness: 0.125"

  • Chine Width: 88"

  • Fuel Capacity: 40 gal.

  • Livewell Capacity: 20 gal.

  • Baitwell Capacity: 7 gal.

  • Total Person, Motor, Gear: 1650 lbs.

  • Approximate Boat Weight: 1950 lbs.

  • Rod Box Length - Port: 8' 6"

  • Rod Box Length - Center: 7' 6"

  • Max. Person Capacity: 6 persons

  • Tandem Axle Trailer GVWR: 4200 lbs.

  • Approximate Length On Trailer w/ Motor Down (May vary with engine model and set-back plate): 23' 10"

  • Approx Length On Trailer w/Motor Down/Swing Tongue Open (May vary with engine model/set-back plate): 21' 9"

  • Width On Trailer: 102"

  • Height On Trailer: 84"

Standard Features

Custom Details

  • Special 55th Anniversary badging

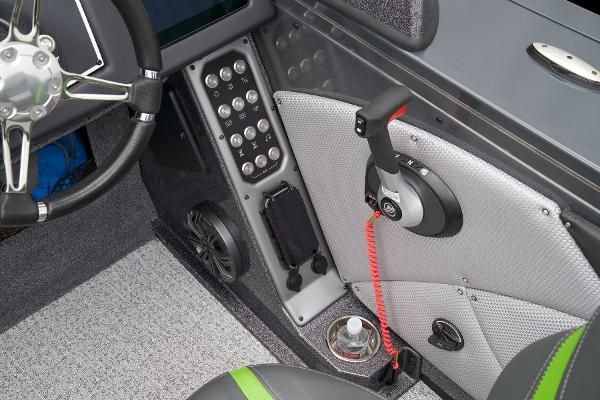

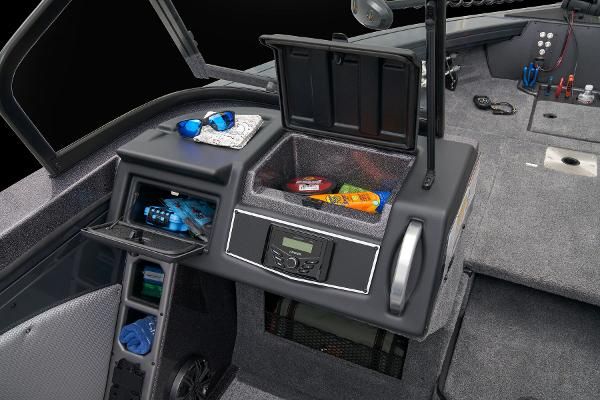

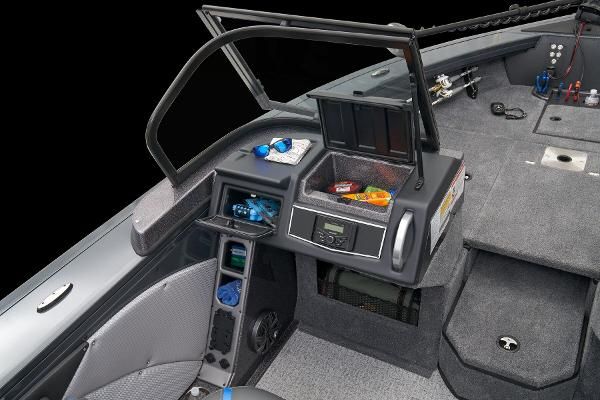

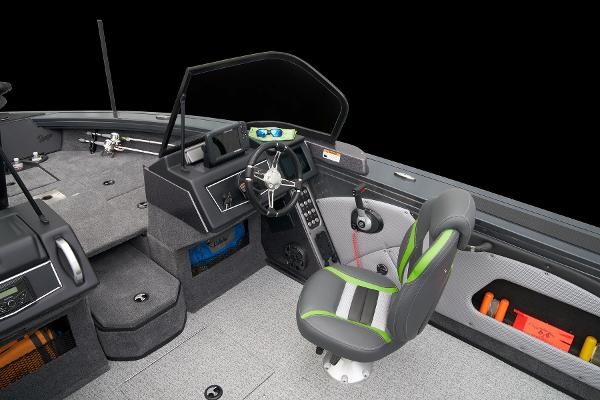

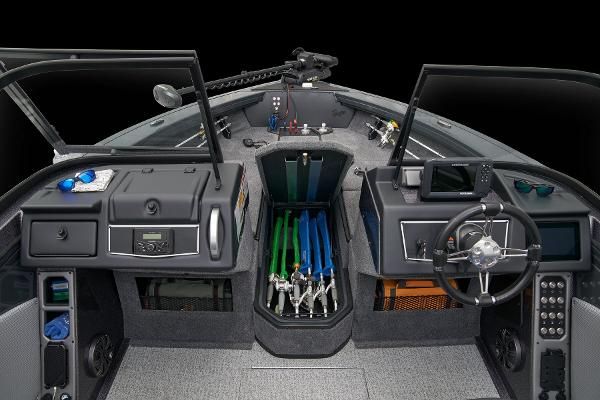

  • NEW Redesigned fiberglass consoles w/ flushmounted R.I.D.E. System Monitor, gimbal-mounted depthfinder & easy touch switching

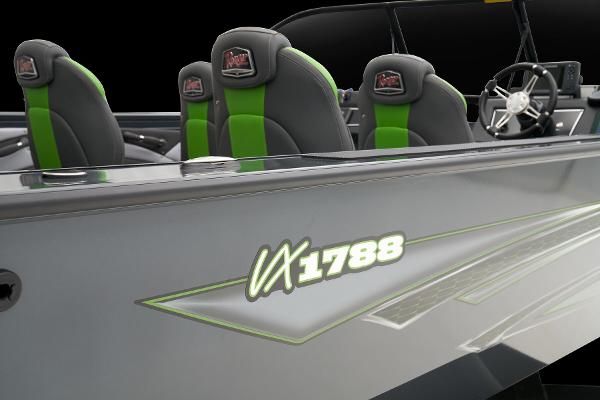

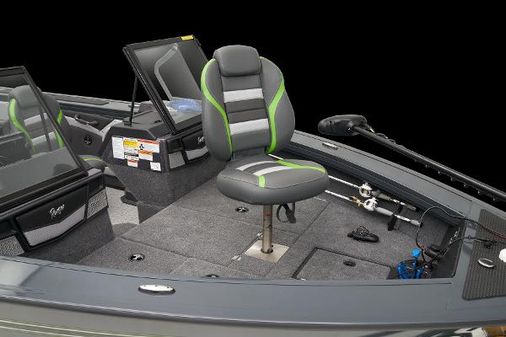

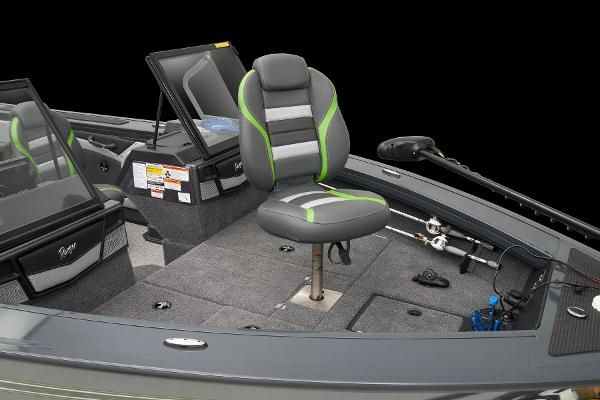

  • Custom fitted marine upholstery- (2) matching fishing seats

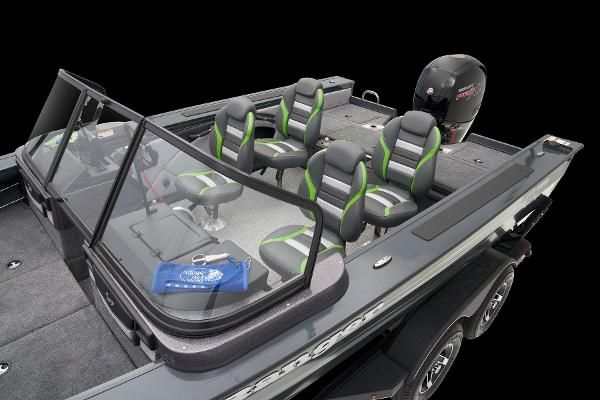

  • Driver and passenger air ride seats w/ seat slides

  • High gloss paint w/ custom chrome Ranger® graphics

  • Choice of colors: white, crystal red, charcoal metallic, midnight blue, carbon, fusion electra lime green, fusion electra blue

  • Durable marine grade carpet

  • Non-skid marine grade vinyl cockpit flooring

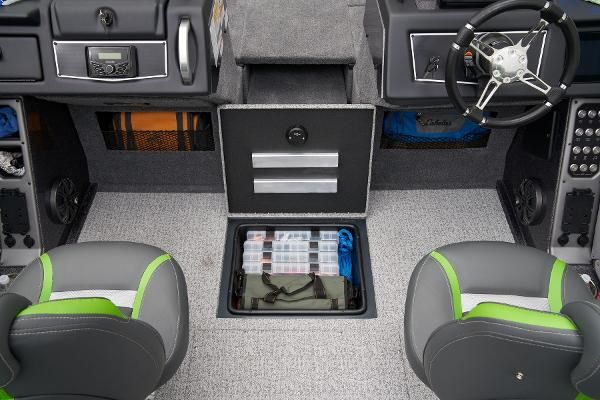

  • In-floor cooler

Electronics

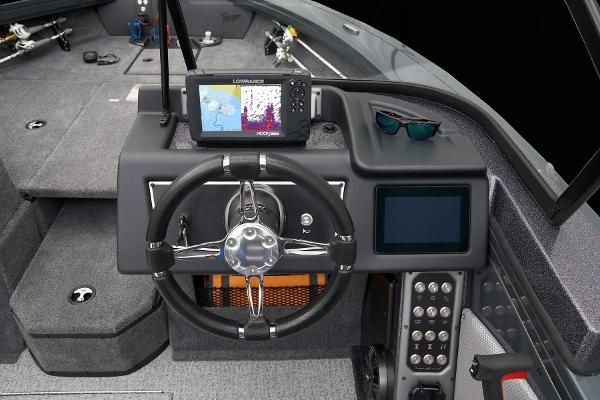

  • NEW - Ranger R.I.D.E. System Monitor - 7" Touchscreen that displays all boat and engine data at a glance, eliminating the need for gauges

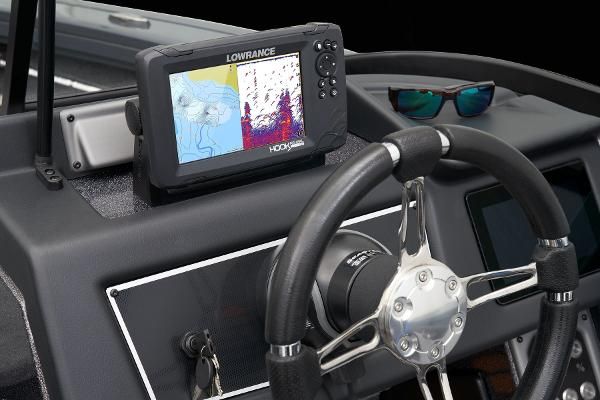

  • Lowrance® HOOK Reveal 7 Combo console

  • 6-gauge trolling motor wiring

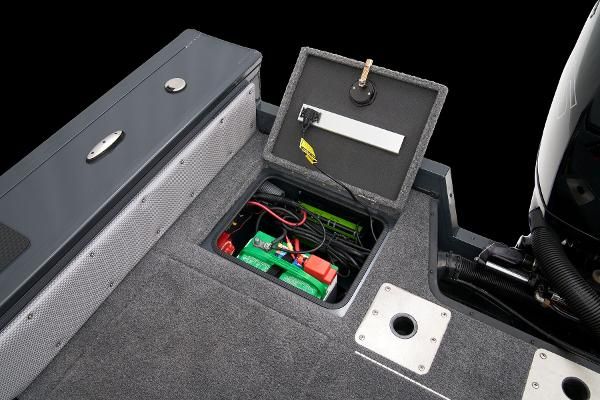

  • Trolling motor battery trays

  • On-board lithium charger, 6A x 3 bank charger

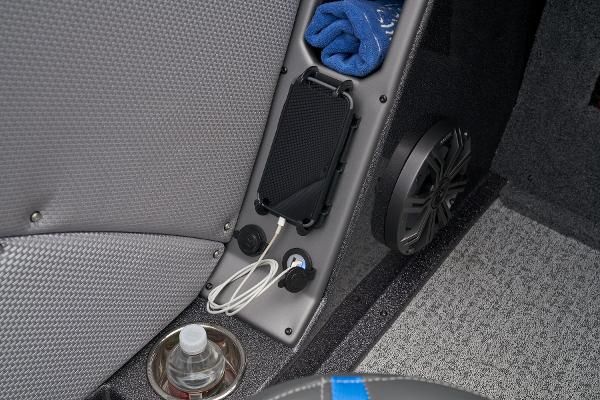

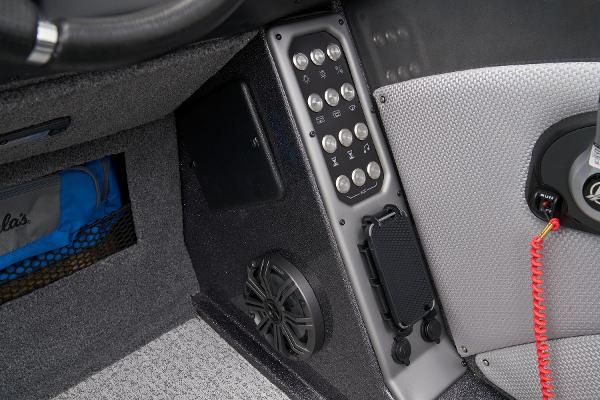

  • 12V power and USB outlets on port and starboard side panels

  • Bilge pump

  • Removable navigation lights

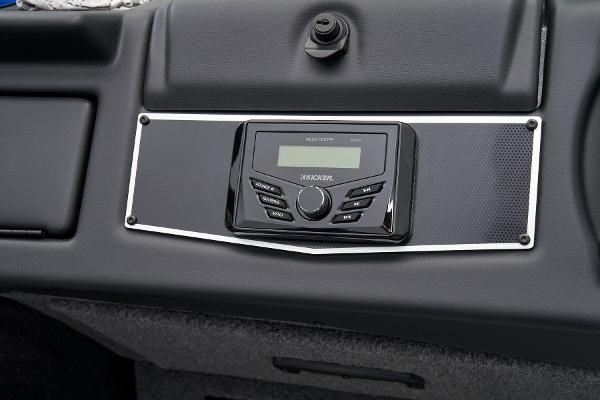

  • Stereo w/ 2 speakers

Power/Performance

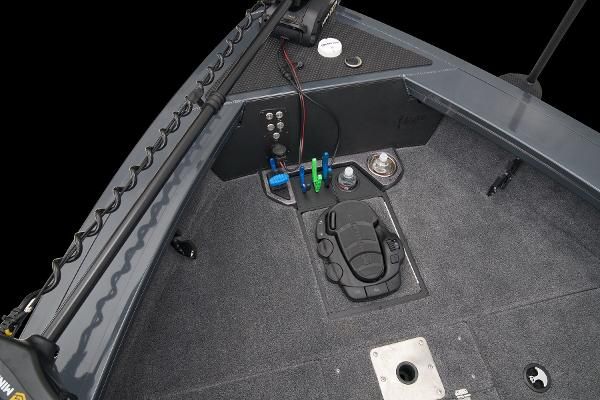

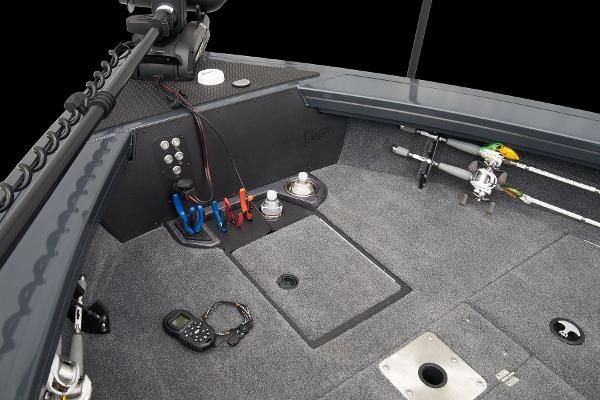

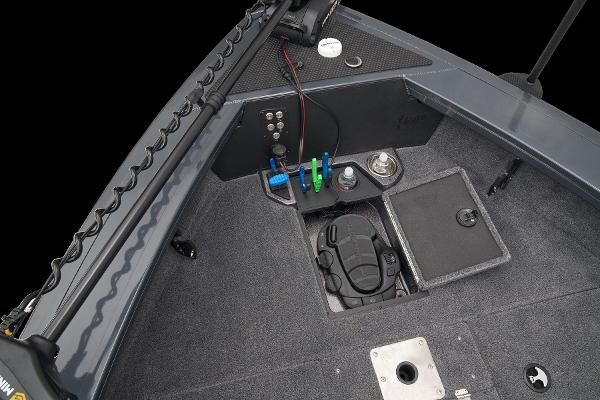

  • Trolling motor pedal lid (hinged lid over recessed trolling motor pedal)

  • Tilt hydraulic steering

  • Competition steering wheel

  • Flush-mounted remote throttle control

  • Prop

  • Power trim

  • Bow trim & navigation switches

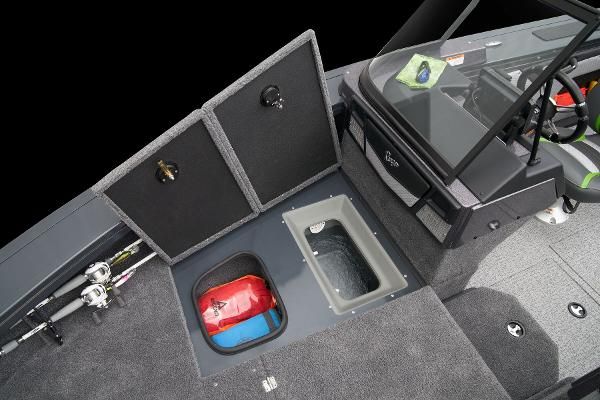

  • Aerated livewell/ baitwell on front deck

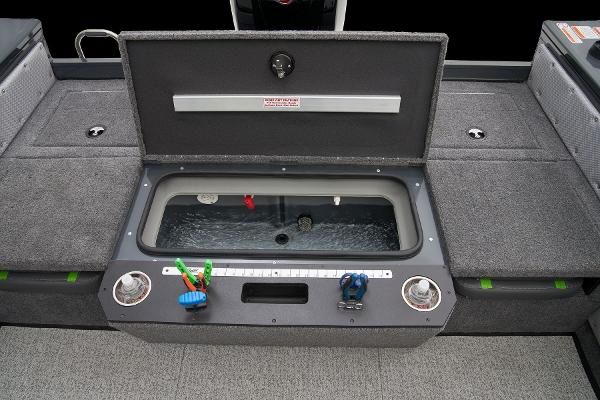

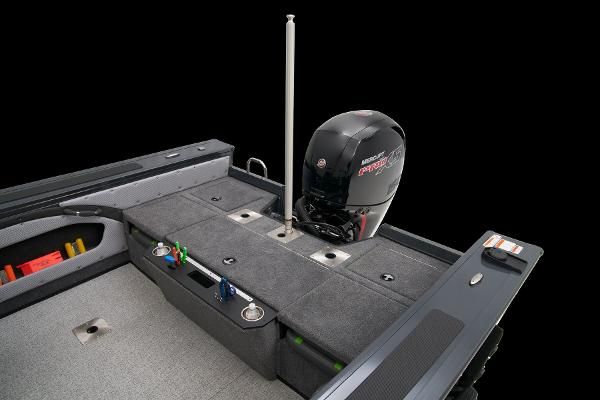

  • Aerated divided livewell w/ timer on rear deck

Safety/Comfort

  • Aluminum transom

  • Automatic bilge

  • Built-in horn assembly

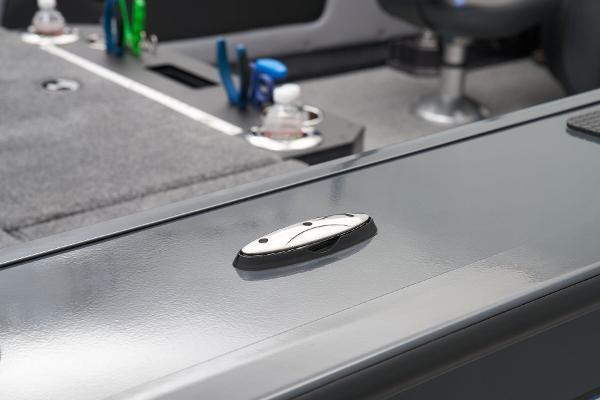

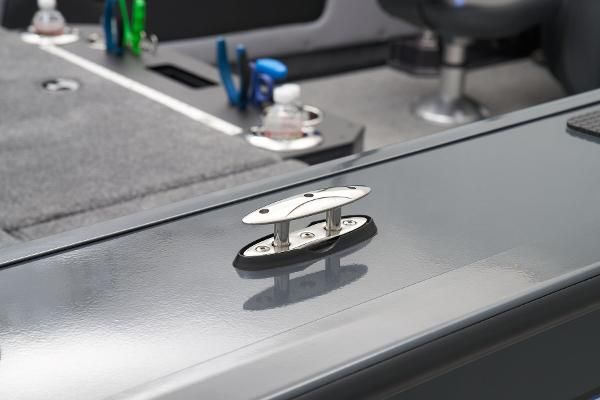

  • Pull-up tie cleats (4)

  • Bow and stern eyes

  • Grab handle at console

  • All-aluminum floor & decks

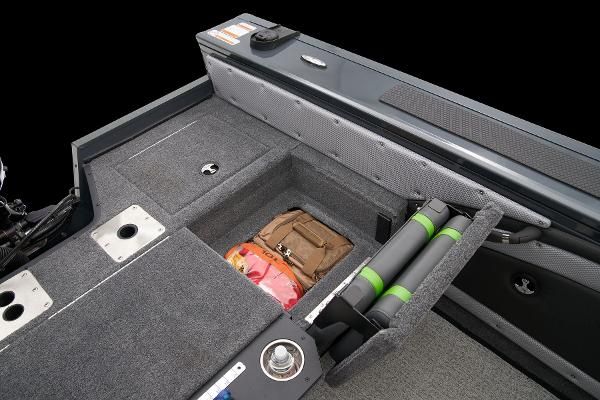

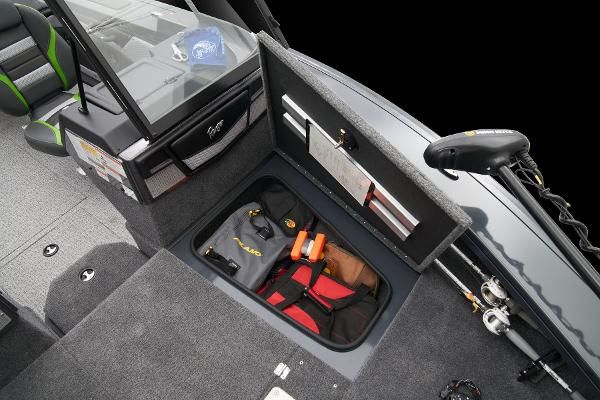

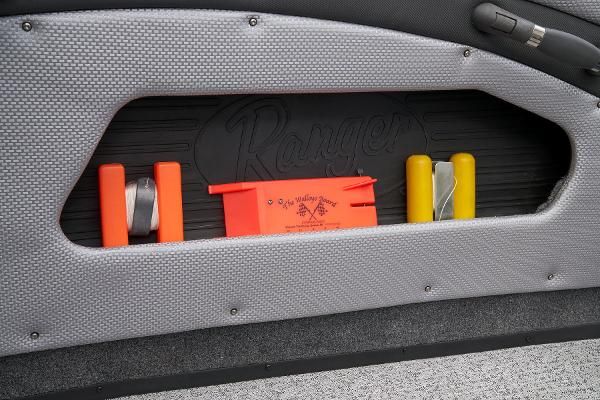

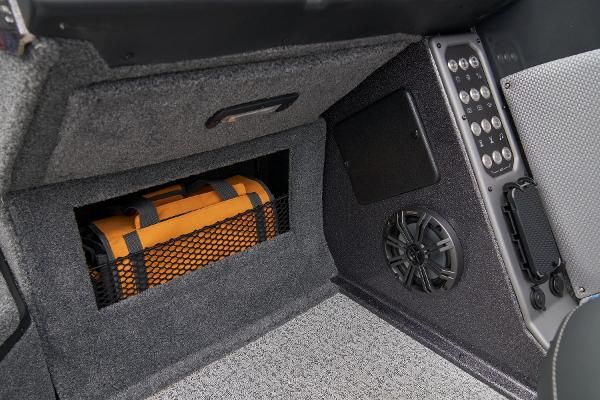

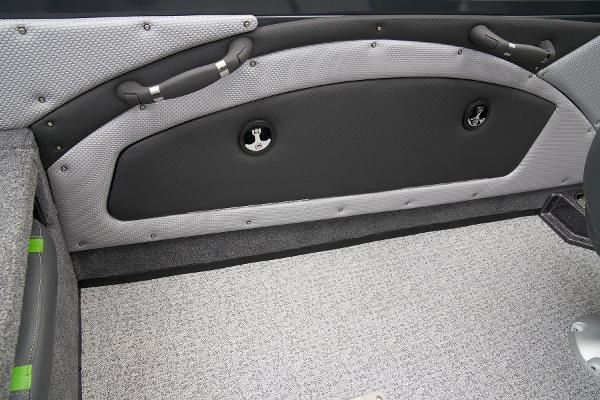

  • Lockable storage

  • Upright, level flotation

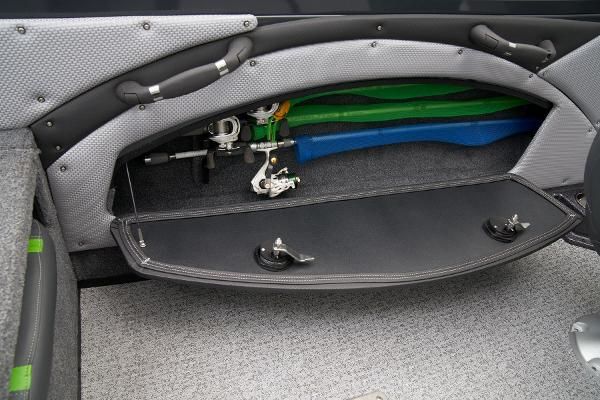

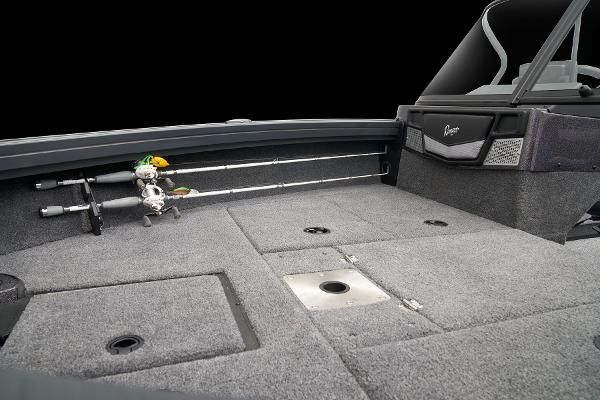

  • Lockable rod storage

  • 5052 H34 marine grade aluminum

  • Foam-filled one-piece construction

  • All-welded construction

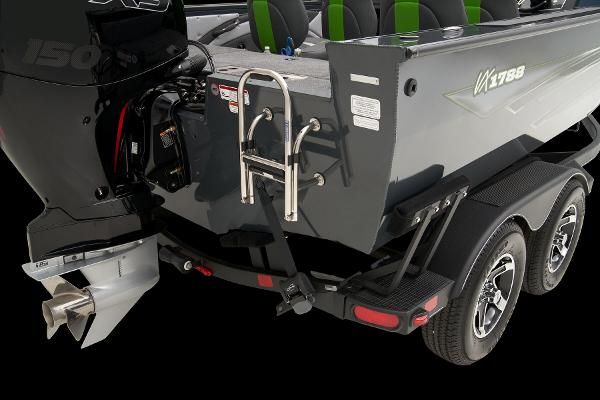

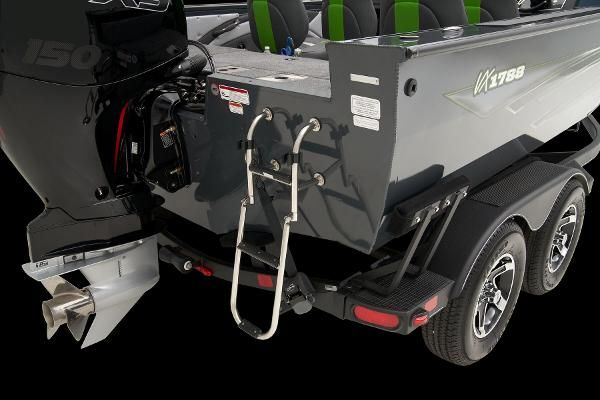

  • Stainless steel boarding ladder

  • Remote drain plug

Trailer Features

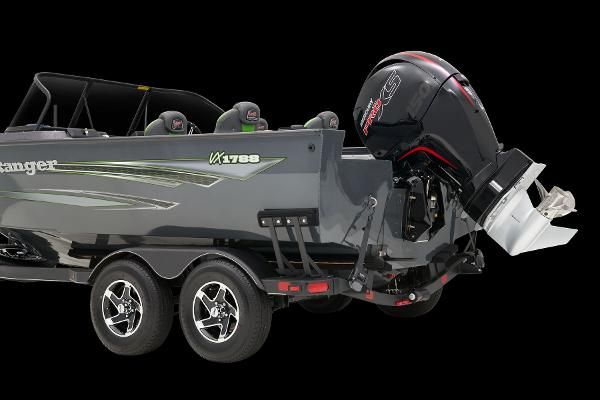

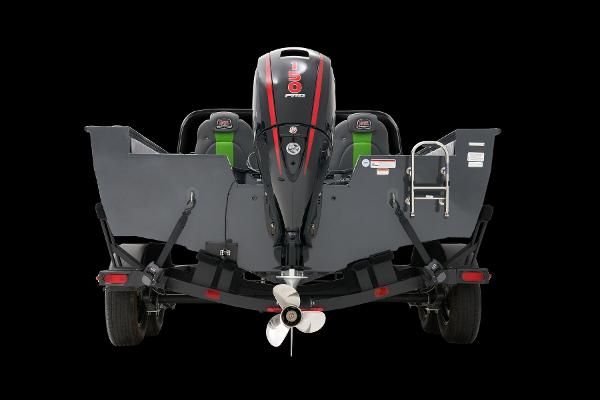

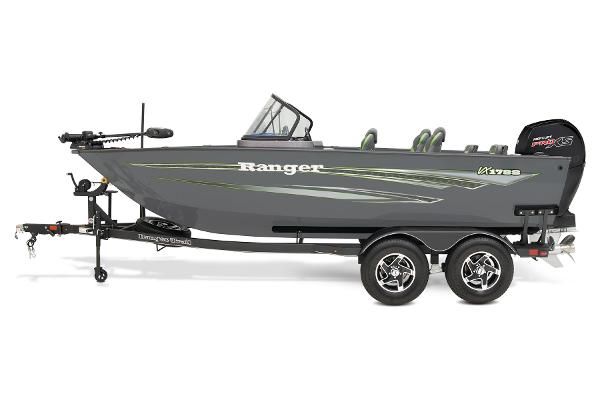

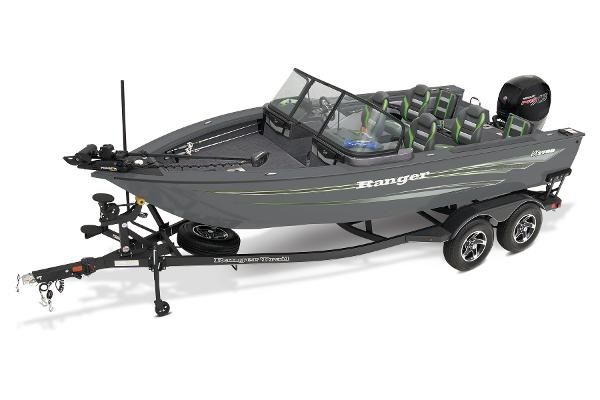

  • Custom built Ranger Trail® trailer / tandem axle

  • 14" aluminum wheels

  • Swing jack

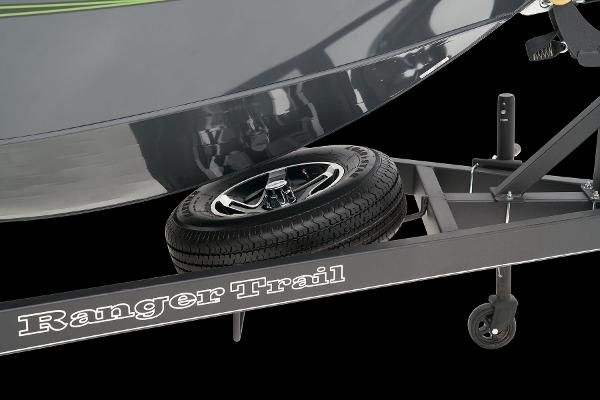

  • Spare tire carrier w/ matching spare

  • Boarding steps and safety handle

  • Leaf spring axle

  • Retractable trailer tie downs

  • Integrated load guides

  • Swing-away tongue

  • NMMA®/NATM certified

  • Waterproof lights
